LM2 Premium CNC EGR Delete Kit
Kit Add-ons
Click "add to kit" to add an item to your kit. The more you add the more you save! Included items can be removed from your kit by clicking the red button "remove from kit". You can only have a Full Exhaust or a DPF pipe added to a kit at a time.
Product Details
2019–2026 GM 3.0L Duramax LM2 EGR Cooler Removal Kit
Clean up your off-road LM2 engine bay with a complete, purpose-built solution for removing the factory EGR cooler and related components.
This kit is designed specifically for the 3.0L Duramax LM2 platform and includes the essential block-off components, coolant hardware, gaskets, and fittings required for a clean installation.
Removing the factory EGR cooler and valve eliminates several restrictive and failure-prone components from the exhaust gas recirculation system. It also helps reduce the amount of exhaust soot entering the intake system in properly configured competition and off-road applications.

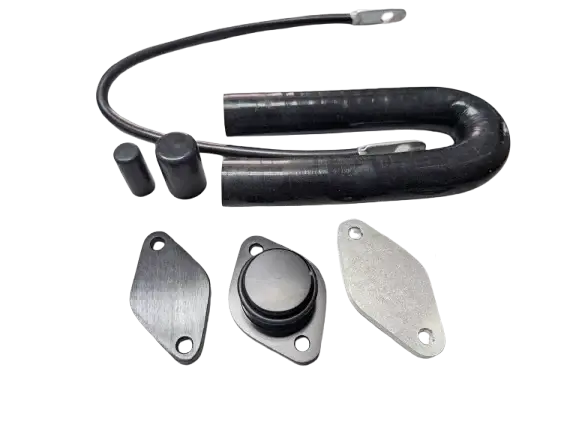

Kit Includes (As pictured)
-
High-quality four-ply silicone coolant hose
-
Two coolant caps
-
Replacement ground cable
-
Two EGR valve and cooler block-off plates
-
Machined aluminum intake plug
-
Two EGR gaskets
-
Required installation hardware
Components Removed
When installed as part of a complete off-road configuration, this kit allows for removal of the following factory components:
-
EGR cooler
-
EGR valve
-
EGR cooler pipe
-
Associated coolant and intake connections
-
Exhaust valve when paired with the required race pipe
Key Benefits
-
Eliminates the factory EGR cooler and valve assembly
-
Reduces potential EGR cooler clogging and coolant leak concerns
-
Helps reduce soot and carbon buildup inside the intake system
-
Cleans up the engine bay
-
Simplifies the off-road exhaust configuration
-
Includes vehicle-specific block-off and coolant components
-
Designed specifically for the 3.0L LM2 Duramax platform
Additional Parts Required
This EGR kit is not a complete emissions-system removal package.
A compatible 3.0L LM2 race pipe and custom off-road ECM tuning are required for proper operation.
The following items are not included unless specifically selected or purchased separately:
-
LM2 race pipe or turbo-back exhaust system
-
ECM tuning and tuning device
-
CAN bus plugs and additional electrical components
-
Professional installation labor
Installation
Professional installation is strongly recommended.
Removal of the factory LM2 EGR system requires access to tightly packaged engine-bay components, draining and rerouting coolant connections, and modifying the truck’s off-road exhaust configuration.
Do not attempt to start or operate the vehicle after installing the hardware until the correct supporting exhaust components and compatible custom tuning have been installed.
Important Fitment Information
This kit is intended for 2020–2022 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks equipped with the 3.0L LM2 Duramax engine.
Fitment is determined by engine code and emissions configuration, not registration year alone.
This kit does not fit the newer 3.0L Duramax LZ0 engine. Confirm that your vehicle is equipped with the LM2 engine before ordering.
Competition and Off-Road Use Only
This product is intended exclusively for closed-course competition, racing, agricultural, export, or other lawful off-road applications.
It is not intended for installation or use on pollution-controlled vehicles operated on public streets or highways.
The purchaser is responsible for confirming that the purchase, installation, and use of this product comply with all applicable federal, state, provincial, and local laws.
Installation may affect the vehicle’s factory warranty and emissions compliance.
